Shear Cut Knife Holders

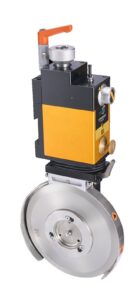

High-speed heavy-duty shear cut knife holder (USA)
T3/AUTO is a third-level automatic model in the INT shear cut series for higher speed, heavier duty and higher automation. Compared with the T2 series, it further improves minimum slit width, speed and material capacity for high-speed slitting, thicker webs and more demanding conditions.
| Blade diameter | Ø200 mm |
|---|---|
| Maker standard | USA |
| Max. knife stroke | 25 mm |
| Side approach type | Tilting side approach |
| Side closed stroke | 7 mm (controllable) |
| Working pressure | 3~6 bar |
| Max. slitting speed | 3000 m/min |
| Min. slitting width | 70 mm |
| Max. paper cutting capacity | 1000 g/m² |
| Max. film cutting capacity | 3 mm |
