Shear Cut Knife Holders
Regular enhanced shear cut knife holder (ITA)

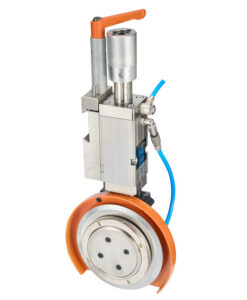

MC-PPS-45134 is a pneumatic shear cut knife holder for regular medium- to high-speed slitting of paper, film and other webs. Based on a standard knife-holder platform, it further enhances stroke, material handling and structural grade for lines that need more working margin and stability, and it can serve as an OEM-level aftermarket replacement.
| Blade diameter | Ø150 mm |
|---|---|
| Maker standard | ITA (Italy) |
| Max. knife stroke | 40 mm |
| Side closed stroke | 3 mm |
| Working pressure | 3~6 bar |
| Max. slitting speed | 800 m/min |
| Min. slitting width | 54 mm |
| Max. paper cutting capacity | 600 g/m² |
| Max. film cutting capacity | 1.5 mm |
