Shear Cut Knife Holders
Shear cut knife holder for international equipment matching (DEU)

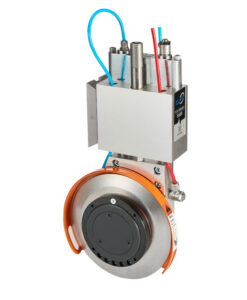

AC48 is a pneumatic shear cut knife holder for international equipment and demanding applications. It is suitable for aftermarket replacement where the holder must match an existing machine structure. In a compact body it offers stable shear-cut capability and good material adaptability for paper, film and other webs, and it can serve as an OEM-level replacement for equipment already in operation.
| Blade diameter | Ø150 mm |
|---|---|
| Maker standard | DEU (Germany) |
| Max. knife stroke | 25 mm |
| Side closed stroke | 3 mm |
| Working pressure | 3~6 bar |
| Max. slitting speed | 1600 m/min |
| Min. slitting width | 55 mm |
| Net weight | 5 kg |
| Max. paper cutting capacity | 400 g/m² |
| Max. film cutting capacity | 1.5 mm |
