Shear Cut Knife Holders

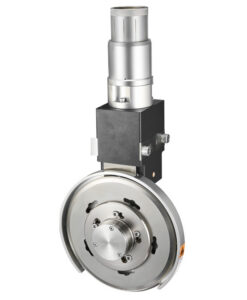

Heavy high-speed matching shear cut knife holder (with CSL constant side-load system)
PSG DF 145/BOX is a pneumatic shear knife holder for heavy-duty equipment and high-speed slitting. Equipped with the CSL constant side-load system, it can extend blade service life by approximately 2 to 10 times. It suits longitudinal slitting equipment with higher requirements for stability, stroke and material range, and it can also serve as a matching replacement or aftermarket upgrade.

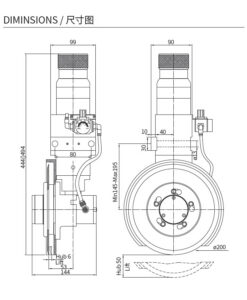

| Blade diameter | Ø200 mm |
|---|---|
| Maker standard | DEU (Germany) |
| Max. knife stroke | 50 mm |
| Side closed stroke | 6 mm |
| Working pressure | 3~6 bar |
| Max. slitting speed | 2600 m/min |
| Min. slitting width | 145 mm |
| Net weight | 15 kg |
| Max. paper cutting capacity | 800 g/m² |
| Max. film cutting capacity | 2 mm |
| Featured system | CSL constant side-load system |
