Shear Cut Knife Holders
Standard high-speed shear cut knife holder

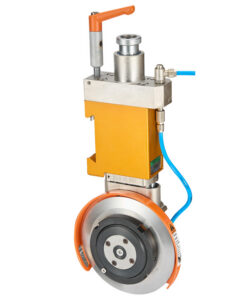

IT-150 is one of INT's classic pneumatic shear cut knife holders for medium- and high-speed web slitting equipment. Compared with smaller models, it offers a longer knife stroke, higher applicable speed and a wider material range. It is a standard high-speed model that balances versatility, speed and stability for continuous slitting of paper, film and similar webs.
| Blade diameter | Ø90 / Ø150 mm |
|---|---|
| Max. knife stroke | 30 mm |
| Side closed stroke | 3 mm |
| Working pressure | 3~6 bar |
| Max. slitting speed | 1600 m/min |
| Min. slitting width | 58 mm |
| Quick-change adaptor | G1/8" ~ 28 |
| Max. paper cutting capacity | 800 g/m² |
| Max. film cutting capacity | 1.5 mm |
Customer-specified knife holders and OEM knife holders are available.
