Shear Cut Knife Holders

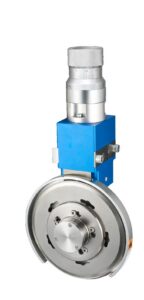

High-speed heavy-duty shear cut knife holder (DEU)
DS8 is a high-grade pneumatic shear cut knife holder for high-speed and heavy-duty slitting. It suits equipment with higher requirements for speed, rigidity and material handling. Compared with standard universal holders, DS8 supports a larger blade diameter, thicker materials and higher speed.
| Blade diameter | Ø150 / Ø200 mm |
|---|---|
| Maker standard | DEU (Germany) |
| Max. knife stroke | 50 mm |
| Side closed stroke | 6 mm |
| Working pressure | 3~6 bar |
| Max. slitting speed | 3000 m/min |
| Min. slitting width | 145 mm |
| Net weight | 12 kg |
| Max. paper cutting capacity | >800 g/m² |
| Max. film cutting capacity | >2 mm |
