Shear Cut Knife Holders

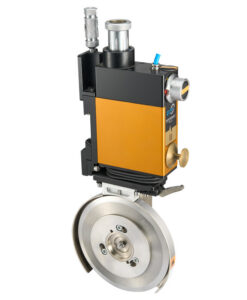

Automatic positioning upgrade shear cut knife holder (USA)
T2/AUTO is the automatic upgrade on the second-level platform. It is suitable for web equipment that needs higher positioning efficiency, less manual error, and medium- to high-speed slitting. Compared with manual models, it is the step from a standard manual setup into automatic positioning.
| Blade diameter | Ø150 mm |
|---|---|
| Maker standard | USA |
| Max. knife stroke | 25 mm |
| Side approach type | Tilting side approach |
| Side closed stroke | 7 mm (controllable) |
| Working pressure | 1.5~6 bar |
| Max. slitting speed | 2000 m/min |
| Min. slitting width | 45 mm |
| Max. paper cutting capacity | 800 g/m² |
| Max. film cutting capacity | 1.5 mm |
