Shear Cut Knife Holders
General standard shear cut knife holder

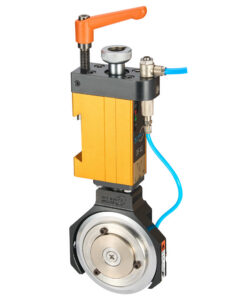

DF40 is a compact pneumatic shear cut knife holder for regular slitting. It supports stable longitudinal slitting of paper, film and other webs on low- to medium-speed equipment. While keeping a small installation width, it provides practical shear capability for standard machine supply and aftermarket replacement.
| Blade diameter | Ø90 mm |
|---|---|
| Max. knife stroke | 20 mm |
| Side closed stroke | 2.5 mm |
| Working pressure | 3~6 bar |
| Max. slitting speed | 400 m/min |
| Min. slitting width | 39 mm |
| Quick-change adaptor | G1/8" ~ 28 |
| Max. paper cutting capacity | 200 g/m² |
| Max. film cutting capacity | 0.4 mm |
