Shear Cut Knife Holders

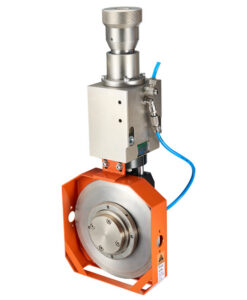

Large high-speed heavy-duty shear cut knife holder (ITA)
MC-PPL(V)-180/200 is a high-grade pneumatic shear cut knife holder for high-speed, large-blade and high-load applications. It is suitable for large slitter rewinders and continuous processing lines that demand higher stability. Compared with regular models, it offers a larger blade platform, higher speed and stronger paper and film capacity.
| Blade diameter | Ø150 / Ø180 mm |
|---|---|
| Maker standard | ITA (Italy) |
| Max. knife stroke | 30 mm |
| Side closed stroke | 5 mm (controllable) |
| Working pressure | 3~6 bar |
| Max. slitting speed | 3000 m/min |
| Min. slitting width | 120 mm |
| Net weight | 12 kg |
| Max. paper cutting capacity | 2000 g/m² |
| Max. film cutting capacity | 3 mm |
