Shear Cut Knife Holders
Standard low/medium-speed shear knife holder

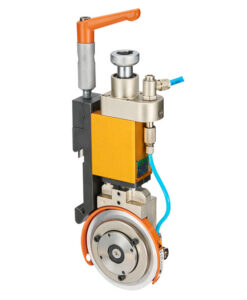

IT-90360 is a pneumatic shear cut knife holder developed for narrow-web slitting. It is suitable for continuous web processing equipment that requires slit accuracy, edge quality and running stability. The standard minimum slit width is 39 mm, and special widths can be made down to 30 mm or narrower. It fits low- to medium-speed precision slitting of nonwoven, paper and film.

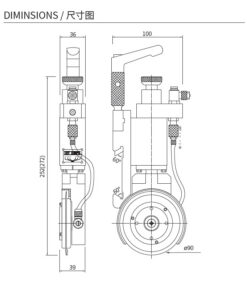

| Blade diameter | Ø90 mm |
|---|---|
| Max. knife stroke | 20 mm |
| Side closed stroke | 2.5 mm |
| Working pressure | 3~6 bar |
| Max. slitting speed | 600 m/min |
| Min. slitting width | 39 mm |
| Quick-change adaptor | G1/8" ~ 28 |
| Max. paper cutting capacity | 400 g/m² |
| Max. film cutting capacity | 0.4 mm |
Customer-specified knife holders and OEM knife holders are available.
