Shear Cut Knife Holders

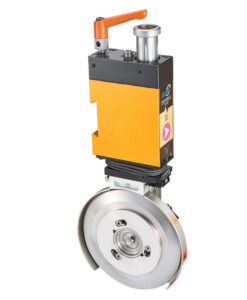

Standard universal shear cut knife holder (USA)
T2/UNI is a second-level standard shear cut knife holder for mainstream slitting of paper, film and other common webs at medium and high speed. Compared with the first-level manual model, it improves stroke, speed and material capacity while keeping a stable, general-purpose structure.

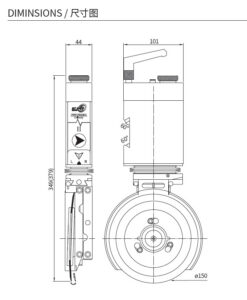

| Blade diameter | Ø90 / Ø150 mm |
|---|---|
| Maker standard | USA |
| Max. knife stroke | 30 mm |
| Side approach type | Tilting side approach |
| Side closed stroke | 7 mm (controllable) |
| Working pressure | 3~6 bar |
| Max. slitting speed | 2000 m/min |
| Min. slitting width | 45 mm |
| Max. paper cutting capacity | 800 g/m² |
| Max. film cutting capacity | 1.5 mm |
