Shear Cut Knife Holders
Special knife holder for fine materials

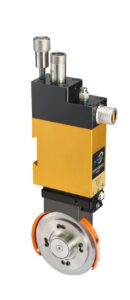

T138 is a pneumatic precision slitting knife holder for fine-material applications. It suits equipment with higher requirements for edge quality, cutting-force control and blade matching. The dual-air-inlet design allows cutting force to be adjusted to the material, and it accepts a wider range of blade angles. It is especially suitable for cigarette paper, copper foil, aluminum foil and battery separator film.
| Blade diameter | Ø90 / Ø200 mm |
|---|---|
| Maker standard | USA |
| Max. knife stroke | 20 mm |
| Side approach type | Floating side approach |
| Side closed stroke | 1.5 mm (controllable) |
| Working pressure | 3~6 bar |
| Max. slitting speed | 600 m/min |
| Min. slitting width | 40 mm |
| Max. paper cutting capacity | 200 g/m² |
| Max. film cutting capacity | 0.2 mm |
