Shear Cut Knife Holders

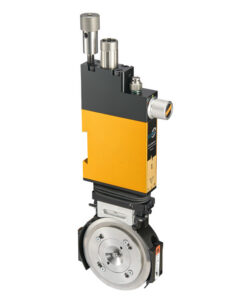

Compact manual shear cut knife holder (USA)
T1/MANU is a first-level manual shear cut knife holder for regular slitting. It is suitable for web equipment that needs compact installation, intuitive operation and easy maintenance. The model uses a tilting side approach, with independent side-approach control and a quick blade-change structure.
| Blade diameter | Ø90 mm |
|---|---|
| Maker standard | USA |
| Max. knife stroke | 20 mm |
| Side approach type | Tilting side approach |
| Side closed stroke | 3.5 mm (controllable) |
| Working pressure | 3~6 bar |
| Max. slitting speed | 600 m/min |
| Min. slitting width | 25 mm |
| Max. paper cutting capacity | 400 g/m² |
| Max. film cutting capacity | 0.4 mm |
