Crush Cut Knife Holders

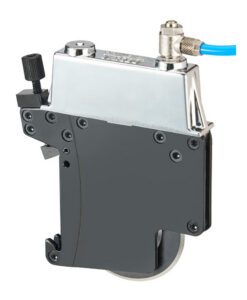

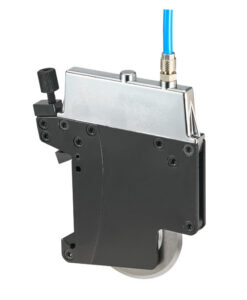

IT-76127 / IT-76200

Precision enhanced crush cut knife holder

IT-76127 is a crush cut knife holder designed for longer service life and higher stability. It suits equipment that needs higher crush-cut precision, holder durability and narrow-web capability. Compared with basic crush cut holders, it uses a higher-strength material platform, with a holder life of more than two years, a slitting deviation of ±0.05 mm and a minimum slit width of 12.7 mm. The same page includes IT-76200.

Overview

Specification Comparison

ItemIT-76127IT-76200
Max. air pressure6 bar10 bar
Max. crush force40 kgf (6bar)100 kgf (10bar)
Slitting tolerance±0.05 mm±0.05 mm
Min. slitting width12.7 mm20 mm
Max. knife stroke16 mm16 mm
Max. slitting speed150 m/min150 m/min
Holder materialW1 / manganese steelW1 / manganese steel
Holder service lifeAbove 2 yearsAbove 2 years
Blade specificationsØ76.2-Ø22-6.2Ø76.2-Ø22-6.2
Blade material / angleSUJ-2/SKD11;45°/60°SUJ-2/SKD11;45°/60°
