Guide Bars

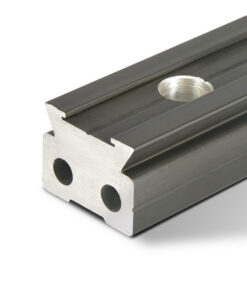

The guide bar is the base used to install pneumatic knife holders on the machine. It is an aluminum-alloy extrusion: light, accurate, with 2 or 3 through holes that can be used for side-plate mounting or as an air path. The surface is anodized and the bar can be installed on the machine directly.
| Max. length | 4 m / bar |
|---|---|
| Weight | 3.2 kg/m |
| Angle | 60°–60° |
| Material | Aluminum alloy extrusion |
| Surface | Anodized |
| Profile height | 35 mm |

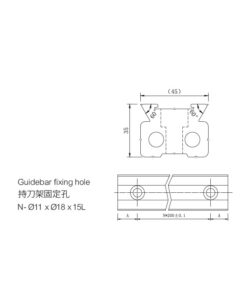

| Fixing hole | N-Ø11×Ø18×15L, pitch N×200±0.1 |
Customer-specified knife holders and OEM knife holders are available.
